Trampoline Hobie Cat Tiger / Pacific / Pearl
search
  • Trampoline Hobie Cat Tiger / Pacific / Pearl

Trampoline Hobie Cat Tiger / Pacific / Pearl

Forward Sailing Product reference: FW-TRHBTI0000
Stock available, Ship with in 3/5 days
Frais de port : 6,52€

Trampoline pour Hobie Cat Tiger en mesh, également compatible avec le Hobie Cat Pacific et le Hobie Cat Pearl

€445.00
Tax included

By buying this product you can collect up to 37 point points. Your cart will total 37 points that can be converted into a voucher of €7.40.

Quantity

By buying this product you can collect up to 37 point points. Your cart will total 37 points that can be converted into a voucher of €7.40.



Returns and exchanges within 45 days*



Free delivery from 99€ of purchase



And from €6.52 worldwide **



100% secure payment

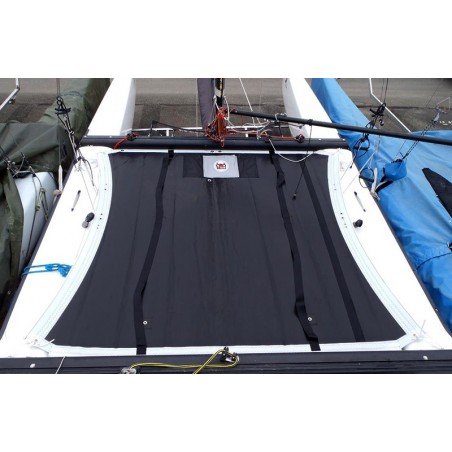

Trampoline for Hobie Tiger F18

- Trampoline Mesh treated against UV, cloth from Challenge Sailcloth

- 3 pockets
- 2 belts of abseiling
- Specific openings to place the spinnaker halyard with the snuffer kit
- Many eyelets on each side (for ropes, elastics for trapeze, system for daggerboards, fixation and tension of the trampoline…)

This trampoline is compatible with the different versions of the Hobie Tiger:


-> Set up for old model (Tiger < 2003) :

The old Hobie Tiger have a trampoline with straight sides, placed in a rail along each hull (in direct or tightened), and also fixed in the front beam. It is finished at the back with some eyelets, to tighten to an independent strap, which is placed in the rear bream to put under tension.

Very often this strap in the rear beam has a longer lifespan than the trampoline, we recommend to keep this part in the rear beam, it will be used to tighten our trampoline*.
- Our reference has a curved shape on each side, with a rope inside reinforcements which will be used to put the lateral tension.
- For that it is necessary to set up 2 eyestraps, one on each side of the beams (total of 4).

- Then insert the trampoline in the front beam
- Put the tension on each side
- Place the batten provided at the back of the trampoline --> You need to use a tube batten of 1.90m long (diameter 8mm), not provided, to place at the back of the trampoline*.

* : if the strap we are talking about cannot be reused on your catamaran, no problem, you can still adapt our trampoline, but with the white extension, and in this case you will have to fix some lacing buttons on the back of the rear beam (CF below : set up of the new model)


-> Set up for the new model (Tiger>2003) :

- This new model is free on each side – with a curved shape, still fixed in the front beam and without the strap with eyelets in the rear beam, which is replaced by some lacing buttons on the back of this rear beam.

- Our trampoline is delivered with a white extension, to place at the back. This extension enables to increase the length until the bottom of the rear beam, it is easy to fix thanks to a tube batten, the same than mentionned above (8mm diameter and 1.90m long) :

Once you have set up this extension, the trampoline must be fixed such as the original one.

Eyestraps, rivets, lacing ropes, tube battens and lacing buttons are not provided with the trampoline.
